LYNRED
LYNRED develops infrared detectors and thermal-imaging components across the short-wave, mid-wave, and long-wave infrared bands. Its portfolio extends from InGaAs-based SWIR sensors to cooled MWIR solutions and uncooled microbolometer-based LWIR detectors, supporting defense, security, industrial imaging, thermography, and environmental-monitoring applications. TARGET A.Ş. is the local point of contact in Türkiye for LYNRED product selection, technical evaluation, and system integration.
Short-Wave Infrared Detection
InGaAs-based SWIR solutions for surveillance, industrial imaging, and scientific applications.
Cooled MWIR Detectors
High-sensitivity cooled mid-wave infrared architectures for compact payloads and demanding SWaP requirements.
Uncooled LWIR Detectors
Compact, high-resolution microbolometers for thermal-imaging systems requiring long range or a wide field of view.
From next-generation pixel architectures to compact MWIR integration.
YOCTO1024 represents uncooled 8.5 µm LWIR detection, SEEGNUS MW SL provides 7.5 µm SXGA MWIR resolution, and GALATEA MW SL enables compact 15 µm PlugUp integration.

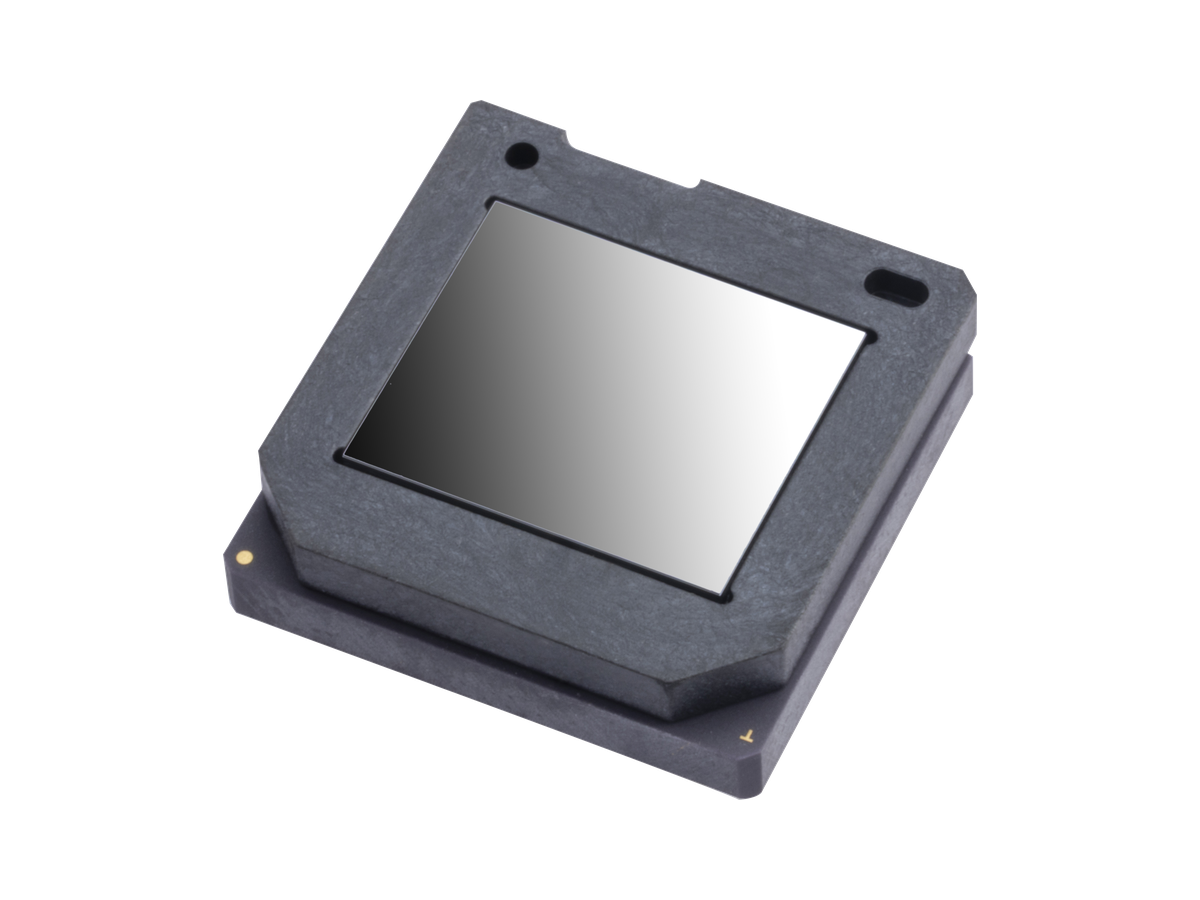

YOCTO1024
YOCTO1024 combines 1024 × 768 resolution and an 8.5 µm pixel pitch in a compact uncooled microbolometer. It is intended for portable binoculars, monoculars, riflescopes, and clip-on devices.
- 1024 × 768 resolution
- 8.5 µm pixel pitch
- Up to 50 Hz full-frame rate

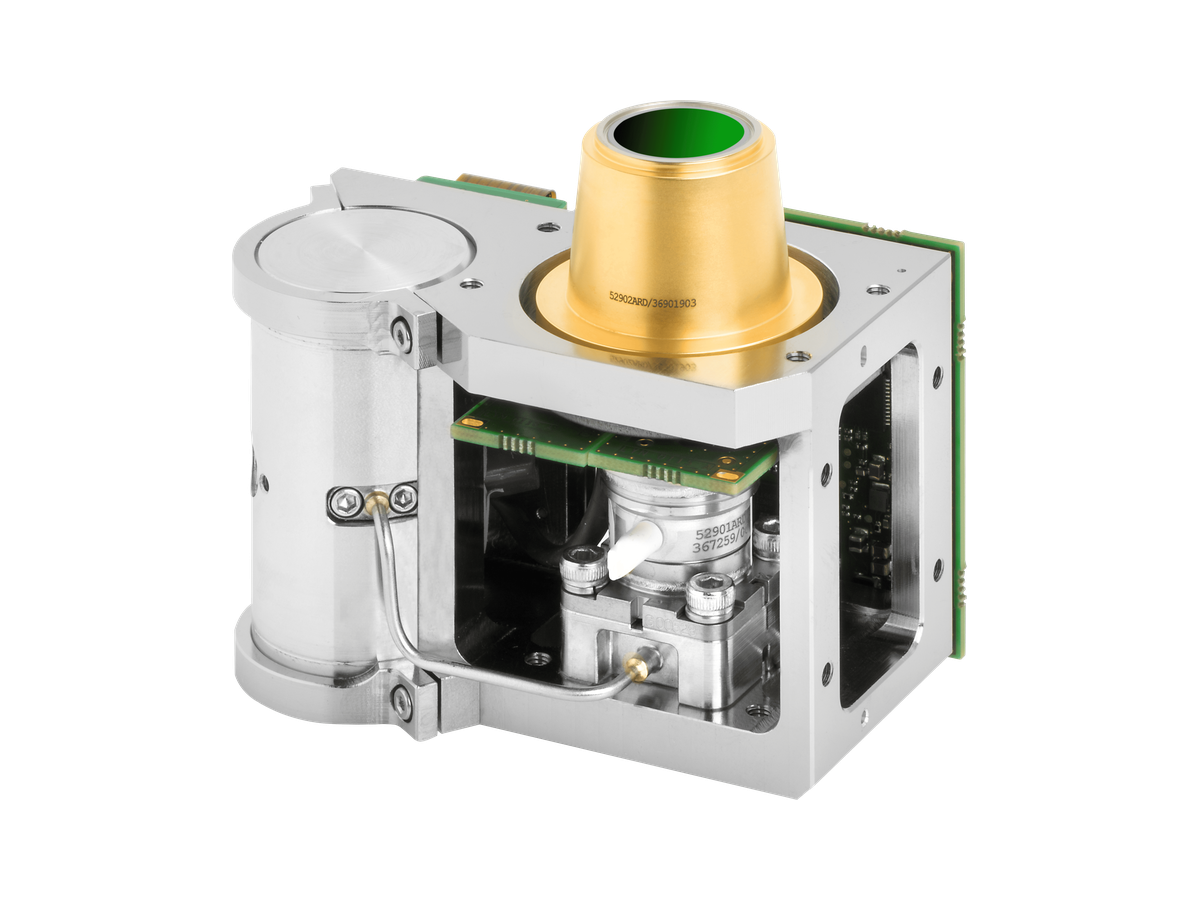

SEEGNUS MW SL
SEEGNUS MW SL is a compact cooled MWIR detector in the PlugUp platform, providing a 1280 × 1024 SXGA format and 7.5 µm pixel pitch for long-range imaging systems.
- 1280 × 1024 SXGA format
- 7.5 µm pixel pitch
- 3.6–4.2 µm detector spectral response
GALATEA MW SL
GALATEA MW SL is a compact cooled MWIR detector developed for SWaP-constrained applications such as small UAV gimbals. The PlugUp platform supports a common system design across compatible products.
- 640 × 512 format
- 15 µm pixel pitch
- 3.6–4.2 µm detector spectral response
System approach
From pixel pitch to system integration.
01 / DEFINE
Define the mission and spectral band
Select a portable uncooled LWIR or long-range cooled MWIR architecture according to detection objectives and operating conditions.
02 / SELECT
Select resolution and pixel pitch
Evaluate image format, field of view, and optical size together with 8.5 µm, 7.5 µm, 10 µm, or 15 µm detector options.
03 / INTEGRATE
Match cooling and system interfaces
Align power, cryocooler, optics, mechanical packaging, and video interfaces with the system architecture.
04 / SUPPORT
Validate with local engineering support
TARGET supports product selection, technical evaluation, and system integration for projects in Türkiye.
Why LYNRED?
LYNRED combines detector technologies across the infrared spectrum with cooled and uncooled product families designed for practical system integration.
Portfolio across the infrared spectrum
Product families spanning SWIR, MWIR, LWIR, and VLWIR address a wide range of detection and imaging requirements.
Cooled and uncooled detector options
High-sensitivity cooled detectors and compact uncooled microbolometers support different range, sensitivity, size, weight, and power targets.
Integration-oriented product families
Resolution, pixel pitch, frame-rate, cooler, and interface options can be selected according to the application architecture.
8.5 µm uncooled and 7.5 µm cooled infrared detectors
Within LYNRED’s latest infrared detector portfolio, YOCTO1024 combines 1024 × 768 resolution with an 8.5 µm pixel pitch in a compact uncooled microbolometer architecture. SEEGNUS MW SL addresses cooled MWIR systems with a 1280 × 1024 SXGA format and 7.5 µm pixel pitch.

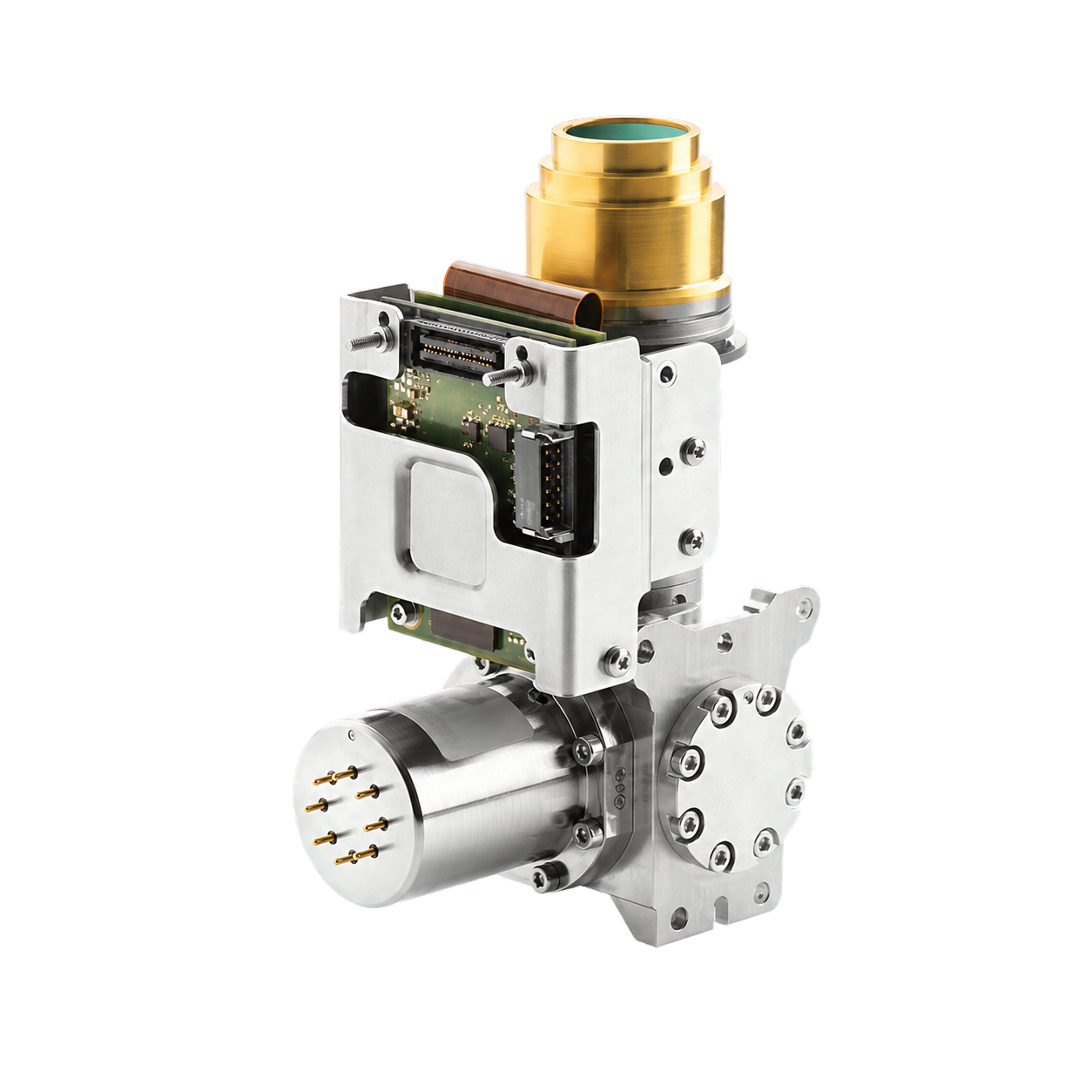

GALATEA MW SL supports small UAV gimbals and surveillance applications through its compact 640 × 512 PlugUp architecture. DAPHNIS HD MW provides a 1280 × 720, 10 µm option for 16:9 MWIR imaging chains.
The appropriate detector is selected by evaluating spectral band, resolution, pixel pitch, field of view, cooling, power, and mechanical-integration requirements together.
LYNRED product selection and integration support in Türkiye
TARGET supports product selection, technical evaluation, optical and electronic component compatibility, and system integration in Türkiye for LYNRED cooled and uncooled infrared detectors.
YOCTO1024, SEEGNUS MW SL, GALATEA MW SL, and DAPHNIS HD MW can be evaluated against the application’s resolution, pixel pitch, spectral band, power, and packaging requirements.
